Solid square end mills

2, 3 and 4 flute square end mills
Diameter: 0.1 mm – 6.00 mm.

2 flute square end mills - General purpose machining (1610 series)

Standard length:
Diameter: 0.1 mm - 6.00 mm
Tolerance D = +0.00 mm / -0.02 mm
Tolerance d = h6

3 flute square end mills - reinforced shank for tough machining applications (Series Titan AX / AXM)

Stub length:
Diameter: 1.00 mm - 8.00 mm
Tolerance D = +0.00 mm / -0.02 mm
Tolerance d = h6

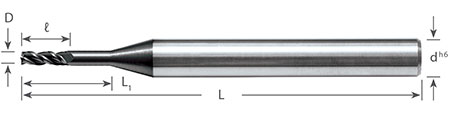

Extended reach:
Diameter: 1.00 mm - 8.00 mm
Tolerance D = +0.00 mm / -0.02 mm
Tolerance d = h6

4 flute square end mills - General purpose machining (1810 series)

Standard length:
Diameter: 0.10 mm - 6.00 mm
Tolerance D = +0.00 mm / -0.02 mm
Tolerance d = h6
